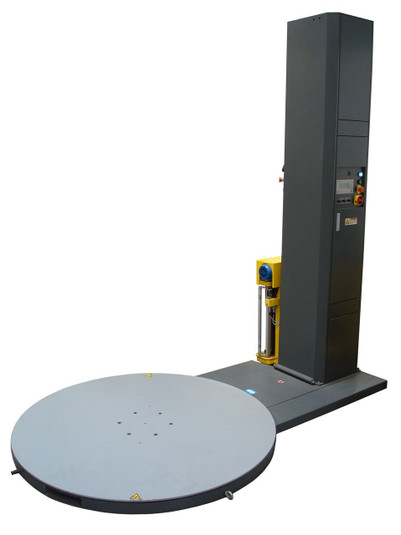

Revolution Pallet Stretch Wrappers

Revolution Stretch Wrappers

Quick Pak is proud to introduce our new REVOLUTION value priced semi automatic stretch wrapper line. These price competitive machines will give you years of trouble free operation.

It will alleviate the problems associated with poorly hand wrapped pallets. The Revolution product line represents a totally advanced design with reliable technology in a sleek efficient frame to give you a rugged machine of unmatched quality.

The Revolution stretch wrapper line was designed to convert the hand wrap user over to wrapping pallets by machine.

The Revolution represents an advanced design with completely reliable technology in a sleek frame, giving users a rugged machine of unmatched quality.

-Low Profile Pallet Stretch Wrapper
-Clean and Simple To Operate PLC
-Heavy Duty 1 hp Motor
-Heavy Duty Turntable ½” Thick Steel
-Automatic Height Detection
-Photo Eye
-Power Requirements: 120V / 1Ph / 60Hz / 10A dedicated service
-Maximum Load Size: 48” Width x 48” Long x 86” High (Option – 94.5”)
-Maximum Load Weight: 4000 Lbs dynamic
-Turntable: 59” diameter laser-cut steel plate
-12 point cam-follower support system
-Turntable height: 3.5” from floor
-Safety surround ring encloses turntable
-Turntable Drive: 12-RPM rotational speed
-1 HP AC variable speed motor
-ANSI #60 direct chain drive c/w shock dampener
-Film Delivery: Quick thread web tensioning system
-Film Capacity: 20” Wide HYBRiD80 Plus Stretched Film
-Control Features: Simple to operate
-LCD Screen and PLC
-Single button automatic cycle start
-Emergency stop button
-Variable film carriage speed/carriage pause control
-Variable turntable speed control
-Auto load height detection photo-eye
-Other Features: All heavy-duty steel construction
-1,500 Lbs shipping weight
-Environment Conditions: Humidity 98%
-Temperature range: 38F – 102F
-Noise: 75 DB

**Options: Heavy-duty steel ramp for pallet jack (50”W x 75”L)
Extended wrap height to 94.5
