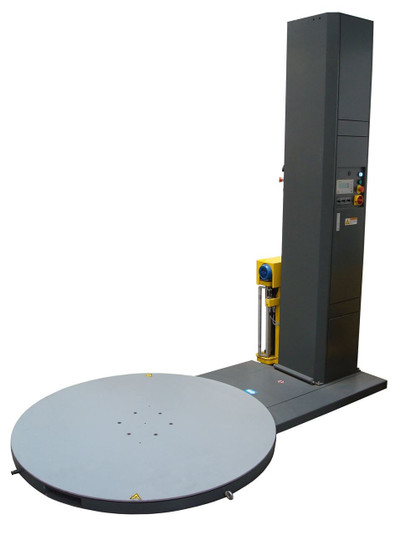

Revolution PS Pallet Wrapping Machine With 133 Inch Wrap Height

Quick Pak is proud to introduce our new value priced semi automatic power pre-stretch pallet wrapper. This price competitive workhorse will give you years of trouble free operation.

It will alleviate the problems associated with poorly hand wrapped pallets.

The Revolution PS represents a totally advanced design with reliable technology in a sleek efficient frame to give you a rugged machine of unmatched quality.

Revolution TM Low Profile Pallet Stretch Wrapper:

Power Requirements: 115V / 1Ph / 15A dedicated service

Maximum Load Size: 50” W x 50” L x 88” H

Maximum Load Weight: 4000 Lbs dynamic

Turntable: 59” diameter laser-cut steel plate:
-16 point cam-follower support system

-Turntable height: 3.5” from floor
-Safety surround ring encloses turntable

Turntable Drive: 12-RPM rotational speed:
-1 HP AC variable speed motor
-ANSI #50 direct chain drive c/w shock dampener

Film Delivery: 200% Power Pre-Stretch film delivery system

Film Capacity: 20" Wide Performance Cast Film

Control Features: Simple to operate:

-LCD Screen and PLC
-Single button automatic cycle start
-Emergency stop button
-Variable film carriage speed/carriage pause control
-Variable turntable speed control
-Auto load height detection photo-eye

Other Features: All heavy-duty steel construction:
-1,500 Lbs shipping weight

Environment Conditions: Humidity 98%

Temperature range: 38F – 102F

Noise: 75 DB

Options: Heavy-duty steel ramp for pallet jack (41.5”W x 59”L)
